Features

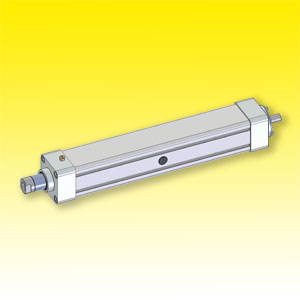

Electric linear actuator, input shaft version, design to fit servomotor supplied by customer.
Standard cylindrical input shaft (available upon request custom sizes, with or without key) or specific coupling for motors / gearmotors supplied by customer.
Fixing interface according to ISO 15552 standards
Squared outer profile 45 mm
Push rod diameter 20 mm
Ball screw (diameter x lead) 12 x Ph mm
Axial recirculation of the balls inside the nut.
Integrated system for lubricant sealing inside the ball nut: the lubricant is only where needed.
Available upon request solutions with zero-backlash nuts or preloaded nuts, whirled ball screws with high accuracy grade (IT3 or IT5).

Discover all the advantages of Servomech solutions for ball screws and nuts with axial recirculation of the balls for high accuracy and performances.

Compact and robust design, lightweight technology to reach great resistance and high performances with low inertia of the components.

Construction technology:

	High Dynamic Efficiency Technology
	Stiffness for Motion Technology
	Accuracy and Repeatability Management System
	Extended Service Life Technology

Discover all the advantages of Linearmech construction technology.

Accessories and options
- Electric limit switches
- Wide choice of mounting attachments according to ISO 15552 standards
